GTX – 19 Mobile Unit
WELCOME TO GTX-19 and B-19
Double Expandable A-unit & B unit capable of producing Native 4K, 1080i, 1080p, 720p. This unit must run in tandem with its B-unit.
Switcher: Grass Valley X K-Frame
Audio Board: Calrec Apollo w/ High Density Bluefin2
Cameras: Sony 4300, 3500, and 1500 Multi Format
Replay: EVS VIA 12-Channel LSM
GTX-19 Mobile Unit – Specifications
4K/High Definition・53’ Double Expando・ Multi-Format (Native 4K, 1080p, 1080i, 720p)
Video Production
Grass Valley HD Kayenne X K-Frame Switcher
192 Inputs / 96 Outputs / 9 Mix Effects
(6) Downstream Keyers per M/E
FlexiKey Programmable Clean Feed
12 iDPM / 4 eDPM / 4 Chroma Keys per Full M/E
DoubleTake
Grass Valley K2 Summit 4-Channel Clip Store
Evertz 576×1152 w/ Xlink HD Router
64 GB Still Store w/movies
KSP 1 M/E Soft Panel GUI
(1) 6 Channel VIA Spot Box w/ Interface & Lance Controller

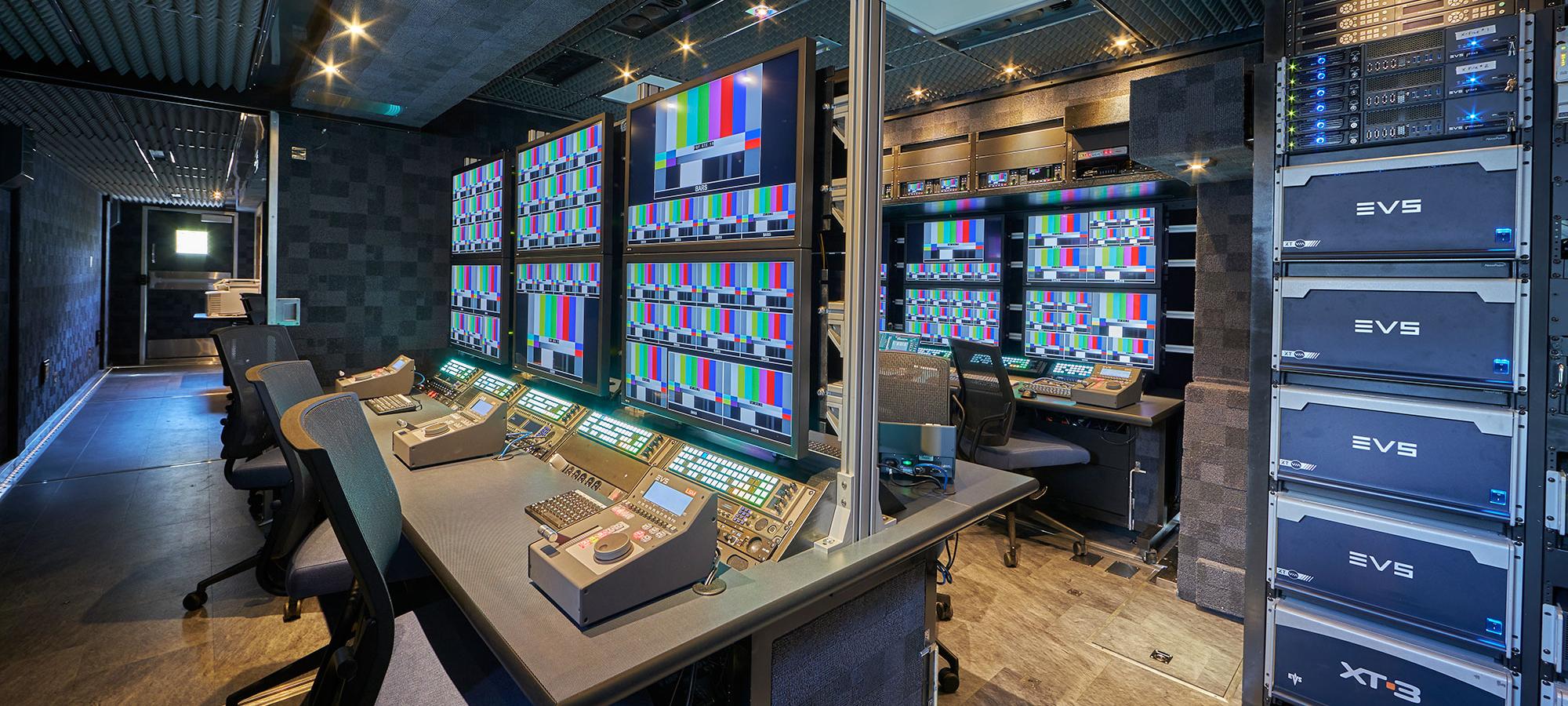

Record/Replay
(6) 12 Channel VIA EVS LSM (w/ SSMO Option)
(2) EVS XFile 3 Archive Station
(2) EVS XHub3
(1) EVS IP Director Package
(1) EVS C-Cast Agent
(1) Sony HDW-2000 VTR
(6) KiPro Ultra Plus w/ 16 1TB Drives
(1) 4 Channel AJA Pro Go USB Recorders
Graphics
*Upon Request
Cameras & Accessories
4K Software w/ HDR Unlocked on all cameras
(12) Sony HDC 3500 Multi-Format Camera
(4) Sony HDC 4300L Multi-Format Camera Fiber Operation Only*
(2) Sony HDC 1500 Multi-Format Camera
(2) Sony HDCP-43 POV Camera Fiber Operation Only*
4 Point Star Filters & Variable Speed Shutter Available
(8) Sony HDLA Lens Adapter
(8) Vinten VECTOR 750 Panhead & Heavy Duty Tripods
(3) Vinten Dolly Wheels for Hard Cameras
(2) Studio Build-Up Kits for Handheld Cameras
(2) Fujinon 4K 14×4.5 Wide Angle Lenses
(5) Fujinon 4K 18×5.5 Lenses
(3) Fujinon 4K 23×7.8 Handheld Lenses
(2) Fujinon 4K 22x Handheld Lenses
(8) Fujinon 4K 107×8.4 Studio w/ Stabilization
Mobile Unit Wired For 24 Cameras
Microphones/Speakers
(14) Sennheiser MKH 416 Shotgun Mics
(2) Sennheiser MKE 44-P Stereo Mic
(6) Sennheiser MD 46 Stick Mics
(2) Sennheiser MKH 70 Shotgun Mics
(6) Sony ECM 77B Lavalier Mics
Production Monitor Wall
Evertz VIP Routing & Multi-Image Display
(18) 31” Postium 4K Monitors 4096×2160
External Monitors/Converters
(9) 9” HD LCD Field Monitors
(6) 18” HD LCD Field Monitors 16:9
(2) 23.8” 4K Color Monitors
(12) Rattlers – ST Fiber to HD/SDI
(4) HD/SDI to HDMI Converter
Systems/Routers
Evertz 576 x1152 w/ Xlink HD Router
(2) Evertz Master Sync and Timecode Generator with 4K
Evertz Changeover
Evertz Digital Time Displays
(20) Evertz 7814 UDX DualPath Frame Sync
(5) AJA FS4 HDR Frame Synchronizer/Converter
4K/3G/HD Up/Down/Cross
(1) ForA 5-Channel HD Color Correctors/Frame Sync
(1) DSS Receiver
Video Shading
Sony 30” BVMX 300-2 Monitor
(3) Sony OLED BVME171 monitors w/HDR
(3) Tektronix 4K WFM/Vector Scopes
(1) Tektronix 3G WFM/Vector Scopes (in engineering)
Intercom/Communications
RTS Adam 160×160 Matrix
(1) 64-Channel MADI Card
(2) OMNEO 64 Cards
(16) IFB Channels
(18) RTS KP 32 Keypanel
(12) RTS KP 12 Keypanel
(15) RTS 4030 IFB Beltpack
(25) RTS BP-325 Dual Channel Programmable Beltpack
(6) RTS TIF 4000 Digital Telephone Interface
(1) Phone System (12 Lines)
(4) QKT
(4) Ringdown Circuits
(6) Motorola 2-Way Radios w/ 2 Base Stations
(15) Single Muff Headsets
(10) Double Muff Headsets
(20) Lightweight Headsets
(6) Sennheiser HMD-26 Announcer Headsets
(6) Studio Technologies Model 21 Talkback Boxes
(4) RTS Telex SPK 300 Biscuit Boxes
Fiber Booth Kit
Calrec Hydra
32×32 Audio
4×10 HD/SDI
(2) KP Ports
(2) 10/100/1G-LAN
Lighting
(2) Lowell Light Kits w/ 4 Instruments each
Audio
Calrec Apollo Digital Console w/Bluefin2
(72) Faders w/ Hydra2
LCD Bar Graph and VU Metering
MADI Interface – 4-Streams
128×128 AES Audio
128×128 Analog Audio
64 x 64 Dante
Dual Processor Engines
Yamaha SPX2000 Multi-Effects Processor
3 Behringer 2 Channel Composer MDX2600
3 Behringer 4 Channel Composer MDX4600
(2) 360 Systems Digicart/E Ethernet Audio Recorders w/ SD Card
ENCO EDAD Digital Audio Server
(1) CD Player
(1) DTS Neural Loudness Meter
(2) DTS Neural Upmix Decoders
(2) DTS Neural Downmix Encoders
(2) DTS Neural Mono to Stereo 4-Channel Synthesizers
Genelec 5.1 Surround Sound Monitoring
RTW Stereo Surround Audio Display
(10) De-embedders
*Upon Request 64 Channel Hydra Stage Box 48 x 16
Cable
6500’ SMPTE
3000’ DT 12 Audio Mults
10500’ Coax Video (Various Lengths)
1500’ Single Mode Tac 12
5-Pair Coax Mults (Various Lengths)
10-Pair Coax Mults (Various Lengths)
Power Requirements
3-Phase
208 Volt
400 Amps
200 Amp Environmental
200 Amp Technical
Maximum Distance From Power Panel: 150’
A-Unit Dimensions (Expanded)
W/ Tractor: 74’ L x 13’6” H x 16’ W
W/O Tractor: 56’ L x 13’6” H x 16’ W
Working Footprint: +5’ Around
Expands: Curb Side and Street Side
B-Unit Dimensions w/liftgate
W/ Tractor: 71’ L x 13’6” H x 8’6’’ W
W/O Tractor: 56’ L x 13’6” H x 8’6’’ W
Working Footprint: +5’ Around
Closed Captioning Device Telestrator
*Upon Request
Closed Captioning Device
Telestrator
