GTX – 20 Mobile Unit
WELCOME TO GTX-20 and B-20
Double Expandable A-unit & B unit capable of producing Native 4K, 1080i, 1080p, 720p. This unit must run in tandem with its B-unit.
Key Features:
Switcher: Grass Valley HD Kayenne XP K-Frame
Audio Board: Calrec Apollo w/ High Density Bluefin2
Cameras: Sony 5500, 3500 and 1500 Multi Format
Replay: EVS VIA 12-Channel LSM
GTX-20 Mobile Unit – Specifications
4K/High Definition・53’ Double Expando・ Multi-Format (Native 4K, 1080p, 1080i, 720p)
Video Production
Grass Valley HD Kayenne XP K-Frame Switcher
192 Inputs / 96 Outputs / 9 Mix Effects
(6) Downstream Keyers per M/E
FlexiKey Programmable Clean Feed
12 iDPM / 4 eDPM / 4 Chroma Keys per Full M/E DoubleTake
Grass Valley K2 Summit 4-Channel Clip Store 64 GB Still Store w/movies
KSP 1 M/E Soft Panel GUI
(1) 6 Channel VIA Spot Box w/ Interface & Lance Controller
Record/Replay
(6) 12 Channel VIA EVS LSM (w/ SSMO Option)
(2) EVS XFile 3 Archive Station
(2) EVS XHub3
(1) EVS IP Director Package
(1) EVS Connected Agent
(1) 4 Channel AJA Pro Go USB Recorders
Graphics
*Upon Request
Cameras & Accessories
4K Software w/ HDR Unlocked on all cameras
(12) Sony HDC 3500 Multi-Format
(4) Sony HDC 5500 Multi-Format Fiber Operation Only*
(2) Sony HDC 1500 Multi-Format
4 Point Star Filters & Variable Speed Shutter Available
(8) Sony HDLA Lens Adapter
(8) Vinten VECTOR 750 Panhead & Heavy Duty Tripods
(4) Studio Build-Up Kits for Handheld Cameras
(3) Fujinon 4k 13×4.5 Wide Angle Lenses
(1) Fujinon 4K 17x Lenses
(1) Fujinon 4K 18×5.5 Lenses
(1) Fujinon 4K 22x Lenses
(4) Fujinon 4K 24×7.8 Handheld Lenses
(8) Fujinon 4K 125×8 Studio w/ Stabilization
Mobile Unit Wired For 24 Cameras
Microphones/Speakers
(14) Sennheiser MKH 416 Shotgun Mics
(8) Sennheiser MD 46 Stick Mics
(4) Sennheiser MKH 70 Shotgun Mics
(6) Sony ECM 77B Lavalier Mics

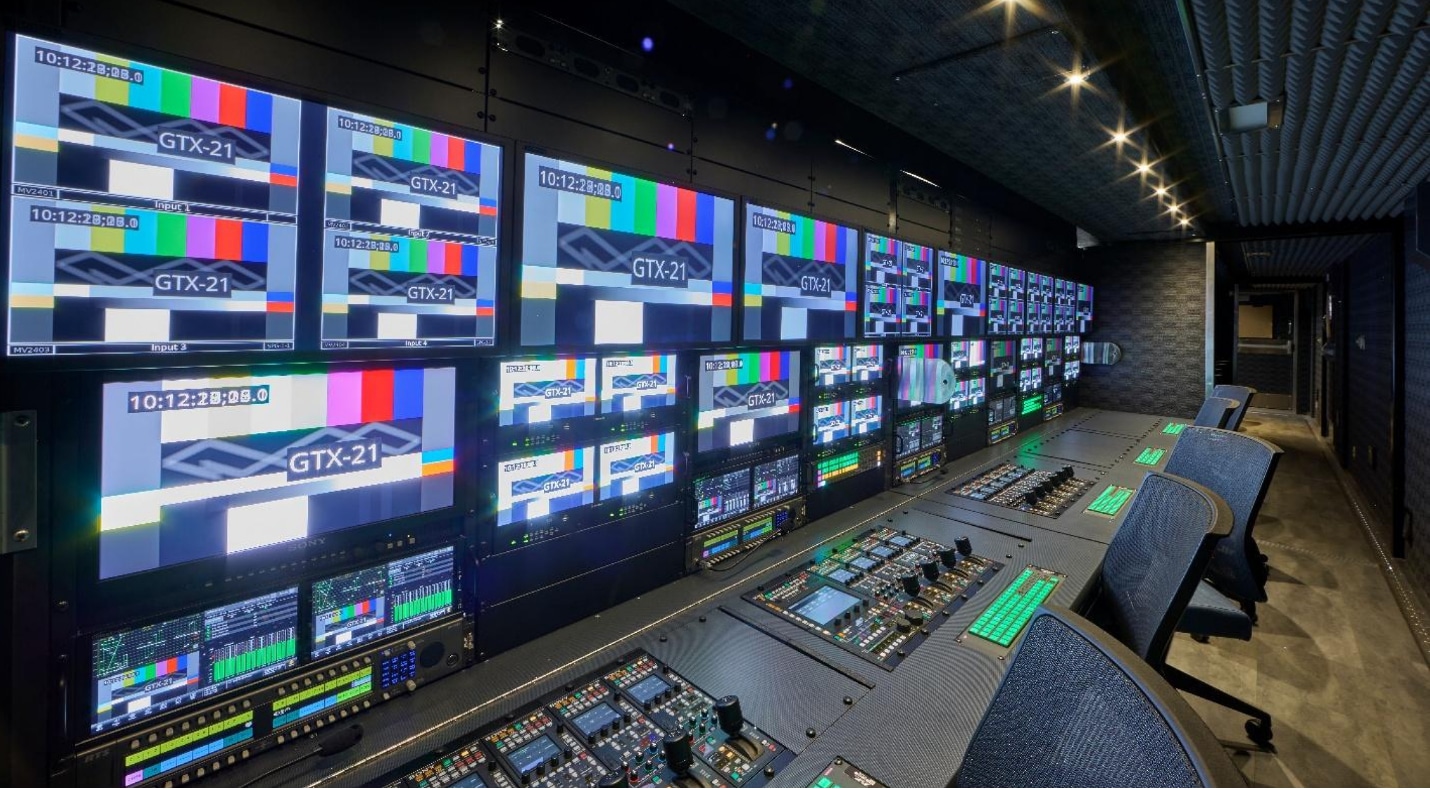

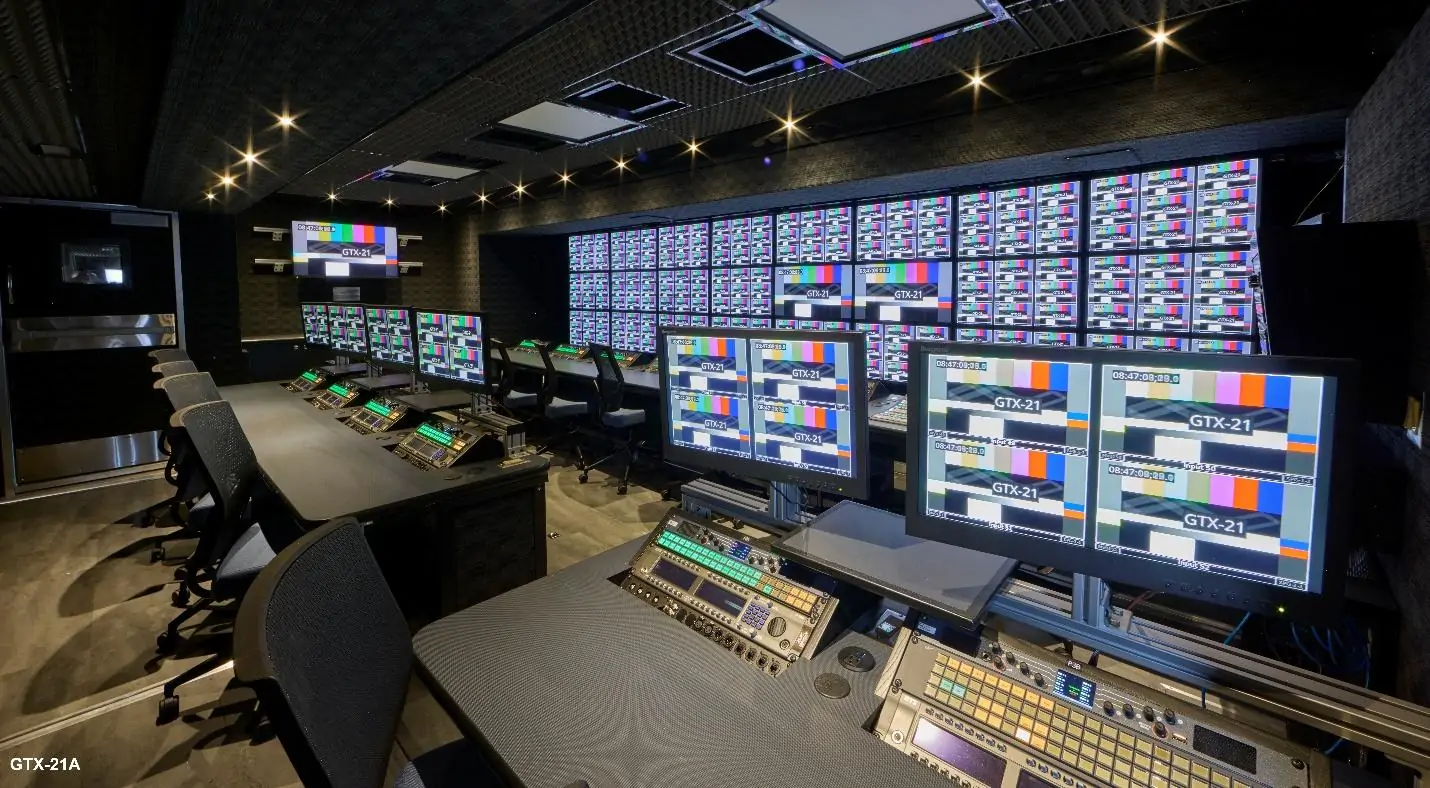

Production Monitor Wall
Grass Valley 821 Routing & Multi-Image Display
(18) 31” Postium 4K Monitors 4096×2160
External Monitors/Converters
(6) 10” HD LCD Field Monitors 16:9
(8) 18” HD LCD Field Monitors 16:9
(12) Rattlers – ST Fiber to HD/SDI
Systems/Routers
Grass Valley 352×608 IP Router
(2) Tektronix Master Sync and Timecode
Generator with 4K
Tektronix Changeover
Evertz Digital Time Displays
(15) AJA FS4 HDR Frame Synchronizer /Converter/4K/3G/HD Up/Down/Cross
(1) DSS Receiver
Video Shading
Sony 30” BVMX 300-2 Monitor
(3) Sony OLED PVM-X1800 monitors w/HDR
(3) Telestream Prism MPI 2
(1) Telestream Prism MPI 2 (in engineering)
Intercom/Communications
RTS Adam 160×160 Matrix
(4) OMNEO 64 Cards
(16) IFB Channels
(19) RTS KP 5032 Keypanel
(7) RTS KP 4016 Keypanel
(16) RTS 4030 IFB Beltpack
(30) RTS BP-325 Dual Channel Programmable Beltpack
(8) RTS TIF 4000 Digital Telephone Interface
(1) Phone System (12 Lines)
(4) QKT
(4) Ringdown Circuits
(16) Single Muff Headsets
(12) Double Muff Headsets
(20) Lightweight Headsets
(6) Sennheiser HMD-27 Announcer Headsets
(6) Studio Technologies Model 21 Talkback Boxes
(4) RTS Telex SPK 300 Biscuit Boxes
Fiber Booth Kit
Calrec Hydra
32×32 Audio
4×10 HD/SDI
(2) 10/100/1G-LAN
Audio
Calrec Apollo Digital Console w/Bluefin2
(72) Faders w/ Hydra2
LCD Bar Graph and VU Metering
MADI Interface – 4-Streams
128×128 AES Audio
128×128 Analog Audio
256 x 256 Dante
Dual Processor Engines
Yamaha SPX2000 Multi-Effects Processor
4 166XL DBX Compressor
1 1046 DBX Compressor
(2) 360 Systems Digicart/E Ethernet Audio Recorders w/ SD Card
ENCO EDAD Digital Audio Server
(1) CD Player
(1) DTS Neural Loudness Meter
(2) DTS Neural Upmix Decoders
(2) DTS Neural Downmix Encoders
(2) DTS Neural Mono to Stereo 4-Channel Synthesizers
Genelec 5.1 Surround Sound Monitoring RTW Stereo Surround Audio Display
(10) De-embedders
*Upon Request 64 Channel Hydra Stage Box 48 x 16
Cable
15000’ SMPTE
3000’ DT 12 Audio Mults
2000’ Coax Video (Various Lengths)
1500’ Single Mode Tac 12
5-Pair Coax Mults (Various Lengths)
10-Pair Coax Mults (Various Lengths)
Power Requirements
3-Phase
208 Volt
400 Amps
200 Amp Environmental
200 Amp Technical
Maximum Distance From Power Panel: 150’
A-Unit Dimensions (Expanded)
W/ Tractor: 74’ L x 13’6” H x 16’ W
W/O Tractor: 56’ L x 13’6” H x 16’ W
Working Footprint: +5’ Around
Expands: Curb Side and Street Side
B-Unit Dimensions w/liftgate
W/ Tractor: 74’ L x 13’6” H x 16’ W
W/O Tractor: 56’ L x 13’6” H x 16’ W
Working Footprint: +5’ Around
Expands: Curb Side and Street Side
Closed Captioning Device Telestrator
*Upon Request
Closed Captioning Device
Telestrator
