GTX – 11 Mobile Unit
Performance and versatility with comfort and reliability.
WELCOME TO GTX-11 and B-11
Single expandable A unit capable of producing Native 1080i, 720p, 24p, 30p, this unit can run as a single unit, however, it has a B unit for the bigger events.
Key Features:
Switcher: Grass Valley Elite K-Frame
Audio Board: Calrec Artemis Beam Digital Console V8 w/High Density Blue Fin2
Cameras: Sony 2500 & 1500 Multi Format
Replay: EVS XT3 8-Channel LSM
GTX-11 Mobile Unit – Specifications
High Definition・53’ Single Expando・ Multi-Format (Native 1080i, 720p, 24p, 30p)
Video Production
Grass Valley HD Kayenne Classic Switcher
96 Inputs / 48 Outputs / 4.5 Mix Effects
(6) Downstream Keyers per M/E
FlexiKey Programmable Clean Feed
12 iDPM / 4 eDPM / 4 Chroma Keys per Full M/E
DoubleTake
Grass Valley K2 Summit 4-Channel Clip Store
Grass Valley Jupiter Grass Valley Trinix 256×256 HD/SDI Router
32 GB Still Store
(1) EVS XT3+ 4 channel Spot Box w/ Interface & Lance Controller
Record/Replay
(4) 8 Channel XT3 EVS LSM (1 w/SSMO Option)
(2) DNF Slow Motion Controllers
(1) EVS X-File 3 Archive Station
(1) EVS Sports Net3 Hub
(1) CISCO 10 Gig Router
*Upon Request EVS IP Director Package
Graphics
* Upon Request
Cameras & Accessories
(8) Sony HDC 2500 Multi-Format Camera
(4) Sony HDC 1500 Multi-Format Camera
**Super Slow Mo available upon request**
(7) Sony HDLA Lens Adapters
(12) HDFX/TX Triax to SMPTE Converters
(7) Vinten VECTOR 700 Panhead & Heavy Duty
Tripods
(1) Vinten Dolly Wheels for Hard Cameras
(2) Studio Build-Up Kits for Handheld Cameras
(5) Fujinon 101×8.9 Studio/Field w/stabilization
(2) Fujinon 88×9.3 Studio/Field w/stabilization
(6) Fujinon 22×7.8 ENG/EFP Handheld Lenses
(2) Fujinon 14X4.5 ENG/EFP Wide Angle
Microphones/Speakers
(8) Sennheiser ME 67MP Shotgun Mics
(5) Sennheiser MKH 416-P48 10″ Shotgun Mics
(1) Sennheiser MKE 44-P Stereo Mic
(5) Sennheiser MD 46 Mics
(2) Sennheiser MKH 70 Mics
(4) Electro-Voice 635A Stick Mics
(2) Sony ECM 77B
(3) Audio Techinica 8531 Lav
(2) Fostex 6301N Throwdown Speakers

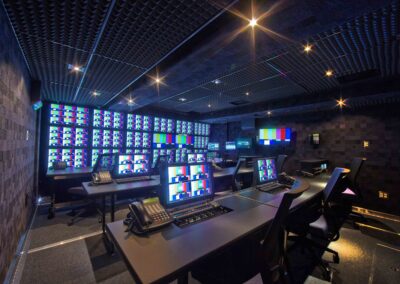

Production Monitor Wall
Evertz VIP Routing & Multi-Image Display
(15) 32” HD LCD Monitors 16:9
External Monitors/Converters
4) 13” HD LCD Field Monitors 16:9
(2) 19” HD LCD Field Monitors 16:9
(4) 20” HD LCD Field Monitors 16:9
(5) Rattlers – ST Fiber to HD/SDI
(4) HD/SDI to HDMI Converter
Systems/Routers
Evertz Master Timecode Generator
Grass Valley Jupiter CM-3000 Control System
Grass Valley Concerto 192×192 Stereo Router
64×64 AES Audio
128×128 Analog Audio
(24) Benchmark Stereo Analog DA’s
(8) Benchmark 4-Channel AES DA’s
(40) Cobalt 9003 Dual 3G HD DA
(7) AJA FS1 Frame Synchronizer/Converter
(6) AJA FS2 Frame Synchronizer/Converter
(1) DSS Receiver
QAM Digital Demodulator
(2) Evertz 16-Channel Embedders
Intercom/Communications
RTS Adam 112×112 Matrix
(13) RTS KP 32 Keypanel
(8) RTS KP 12 Keypanel
(16) IFB Channels
(20) RTS BP-325 Dual Channel Programmable Beltpack
(15) RTS 4030 IFB Beltpack
RTS 4010 IFB Station
(4) RTS TIF 951 Digital Telephone Interface
(1) Phone System (12 Lines)
(3) QKT
(4) Ringdown Circuits
(6) Motorola 2-Way Radios w/ 2 Base Stations
(15) Single Muff Headsets
(7) Double Muff Headsets
(20) Lightweight Headsets
(6) Sennheiser HMD-25 Announcer Headsets
(6) Daltech Talkback Boxes
(2) RTS Telex SPK 300
Fiber Booth Kit
Telecast Adder II
(64) Configurable Audio Channels
(4) Data Channels (Bi-directional 4 x 16)
Telecast Viper
(6) HD/SDI
(1) Analog NTSC
Audio
Calrec Artemis Beam Digital Console V8 w/High Density Blue Fin2
(56) Faders w/ Hydra2
LCD Bar Graph and VU Metering
MADI Interface – 2-Streams
128×128 AES Audio
128×128 AES Audio
Dual Processor Engines
Yamaha SPX2000 Multi-Effects Processor
(2) Rane Audio Delays
(3) dbx 166 XL Compressors
(1) dbx 1046 Quad Compressors
(2) 360 Systems DigiCart II w/ ZipDrives
(1) CD Player
(1) DTS Neural Loudness Meter
(2) DTS Neural Upmix Decoders
(2) DTS Neural Downmix Encoders
(2) DTS Neural Mono to Stereo 4-Channel Synthesizers
Genelec 5.1 Surround Sound Monitoring
DK Stereo Surround Audio Display
*Upon Request 96 Channel Hydra Stage Box
Lighting
(1) Lowell Light Kits w/ 4 Instruments each
Cable
5000’ Triax
3000’ DT 12 Audio Mults
2000’ Coax Video (Various Lengths)
2500’ Single Audio (Various Lengths)
5-Pair Coax Mults (Various Lengths)
10-Pair Coax Mults (Various Lengths)
Power Requirements
3-Phase
208 Volt
400 Amps
200 Amp Environmental
200 Amp Technical
Maximum Distance From Power Panel: 150’
Dimensions (Expanded)
W/ Tractor: 74’ L x 13’6” H x 13’5” W
W/O Tractor: 56’ L x 13’6” H x 13’5” W
Working Footprint: +5’ Around
Expands: Curb Side
B-Unit (Optional Upon Request)
W/ Tractor: 71’ L x 13’6” H x 8’6” W
W/O Tractor: 53’ L x 13’6” H x 8’6” W
Working Footprint: +5’ Around
Closed Captioning Device Telestrator
*Upon Request
Closed Captioning Device
Telestrator
