GTX – 21 Mobile Unit
WELCOME TO GTX-21A,
GTX-21B, and GTX-21C
Double Expandable A-unit & B unit with straight C-Unit, capable of producing Native 4K, 1080i, 1080p, 720p. This unit must run in tandem with its B and C-Unit.
Key Features:
Switcher: Grass Valley HD Kayenne SXP K-Frame
Audio Board: Calrec Argo Digital Console V9 Dual Impulse Core
Cameras: Sony 5500V and 1500 Multi Format
Replay: EVS VIA 12-Channel LSM
GTX-21 Mobile Unit – Specifications
4K/High Definition・53’ Double Expando・ Multi-Format (Native 4K, 1080p, 1080i, 720p)

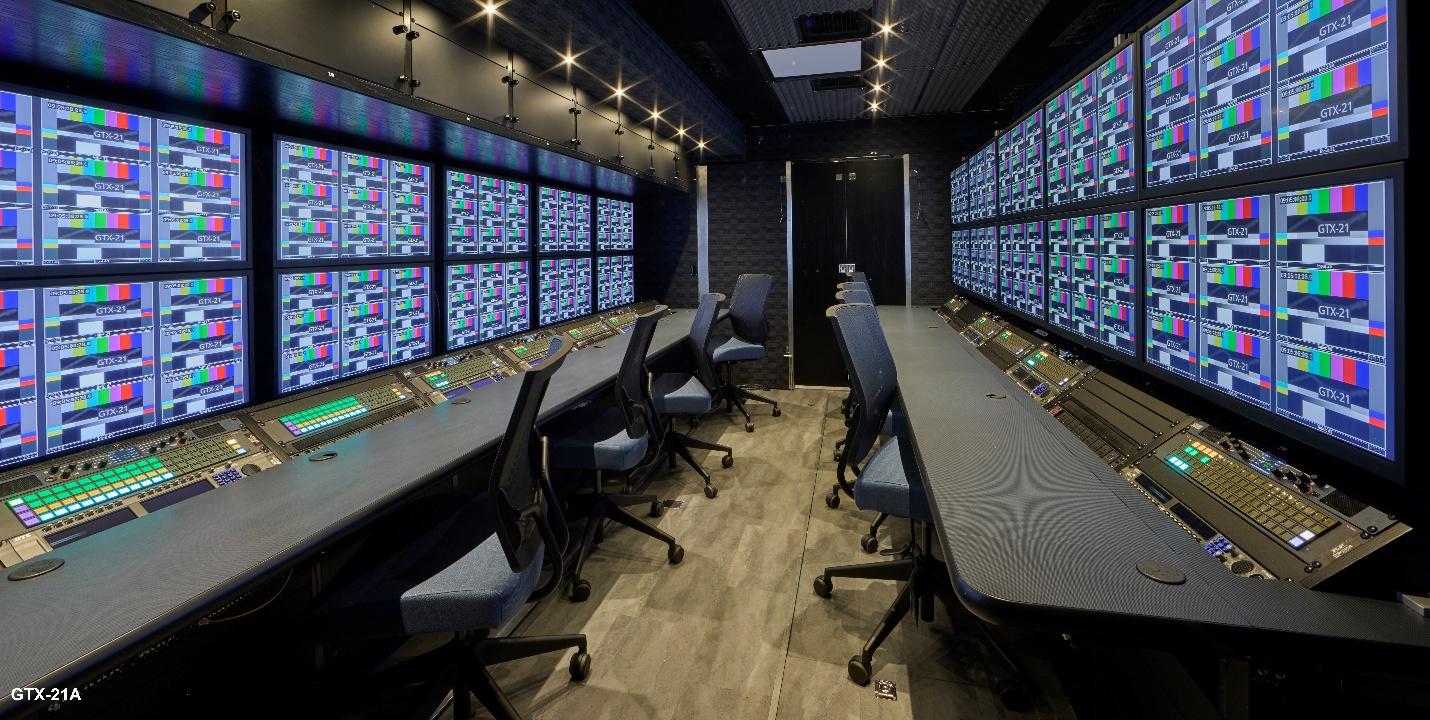

Video Production
Grass Valley HD Kayenne SXP K-Frame Switcher
192 Inputs / 96 Outputs / 9 Mix Effects
(6) Downstream Keyers per M/E
FlexiKey Programmable Clean Feed
iDPM / 4 eDPM / 4 Chroma Keys per Full M/E
DoubleTake
Grass Valley ImageStore w/Movie Option
KSP 1 M/E Soft Panel GUI
(1) 6 Channel VIA Spot Box w/ Interface & Lance Controller

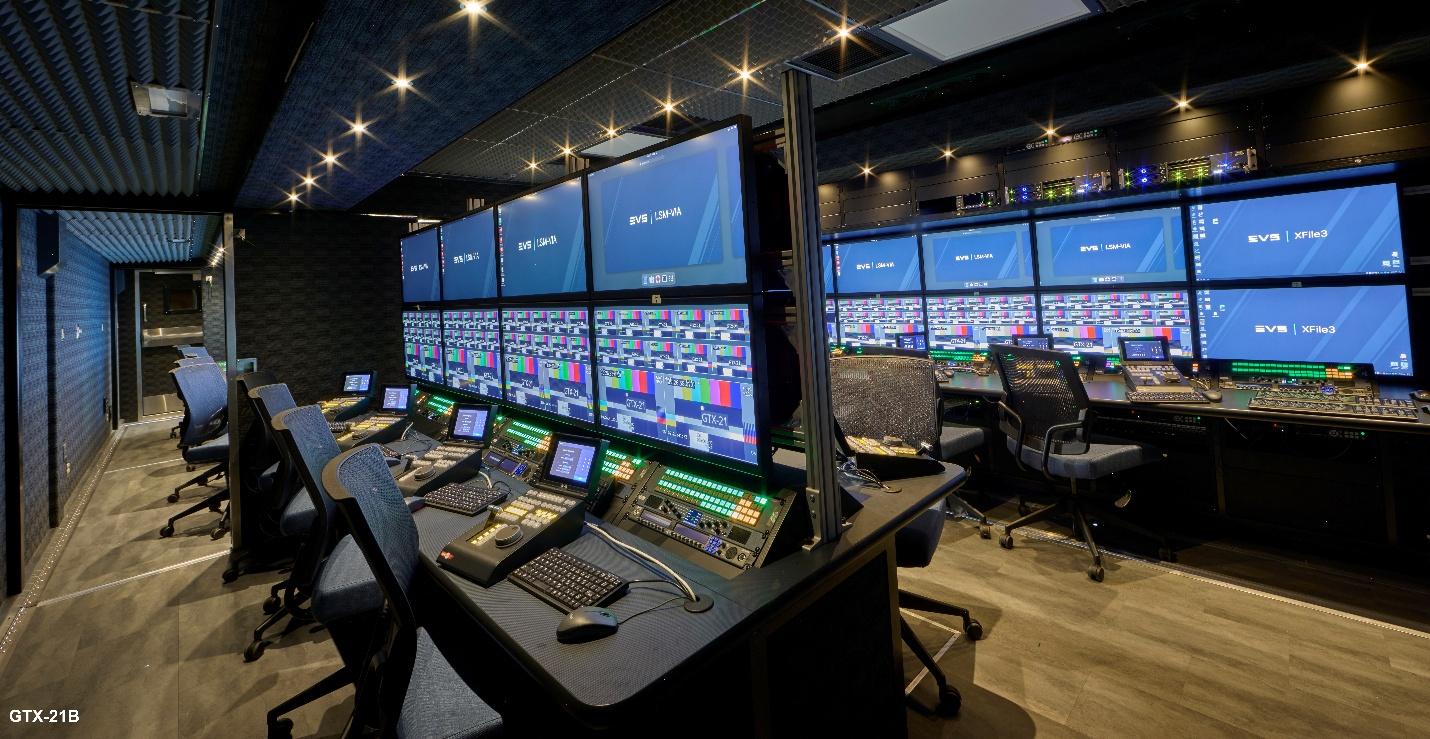

Record/Replay
(8) 12 Channel VIA EVS LSM (w/ SSMO Option)
(2) EVS XFile 3 Archive Station
(2) EVS XHub3
(2) EVS IP Director Package
(2) EVS XT Access
(1) 4 Channel AJA KiPro Go USB Recorders
Mobile Unit Wired for 16 EVS VIAs
Graphics
*Upon Request
Cameras & Accessories
(16) Sony HDC 5500V UHD/HDR Studio Camera w/ variable ND Multi-Format Fiber Operation Only*
(2) Sony HDC 1500 Multi-Format
(10) Sony HDLA Lens Adapter
(10) Vinten VECTOR 750 Panhead & Heavy Duty Tripods
(8) Vinten Vision 100 HH Tripods
(4) Studio Build-Up Kits for Handheld Cameras
(3) Fujinon 4k 13×4.5 Wide Angle Lenses
(6) Fujinon 4K 24×7.8 Handheld Lenses
(10) Fujinon 4K 125×8 Studio w/ Stabilization and Apodization Filter
(16) Sony HDX/Shed Kits
Mobile Unit Wired for 32 Cameras
Microphones/Speakers
(14) Sennheiser MKH 416 Shotgun Mics
(8) Sennheiser MD 46 Stick Mics
(4) Sennheiser MKH 8070 Shotgun Mics
(6) Sony ECM 77B Lavalier Mics

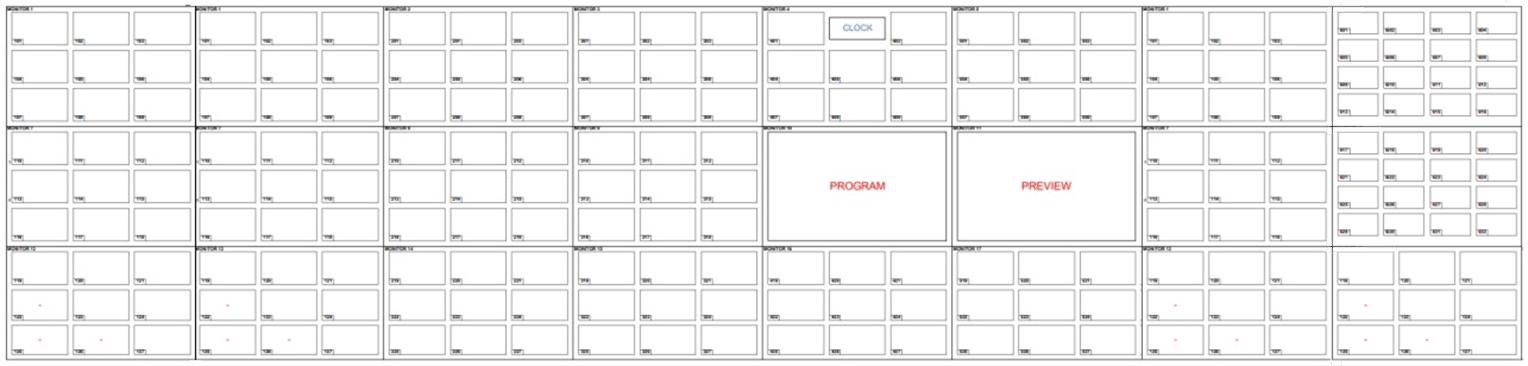

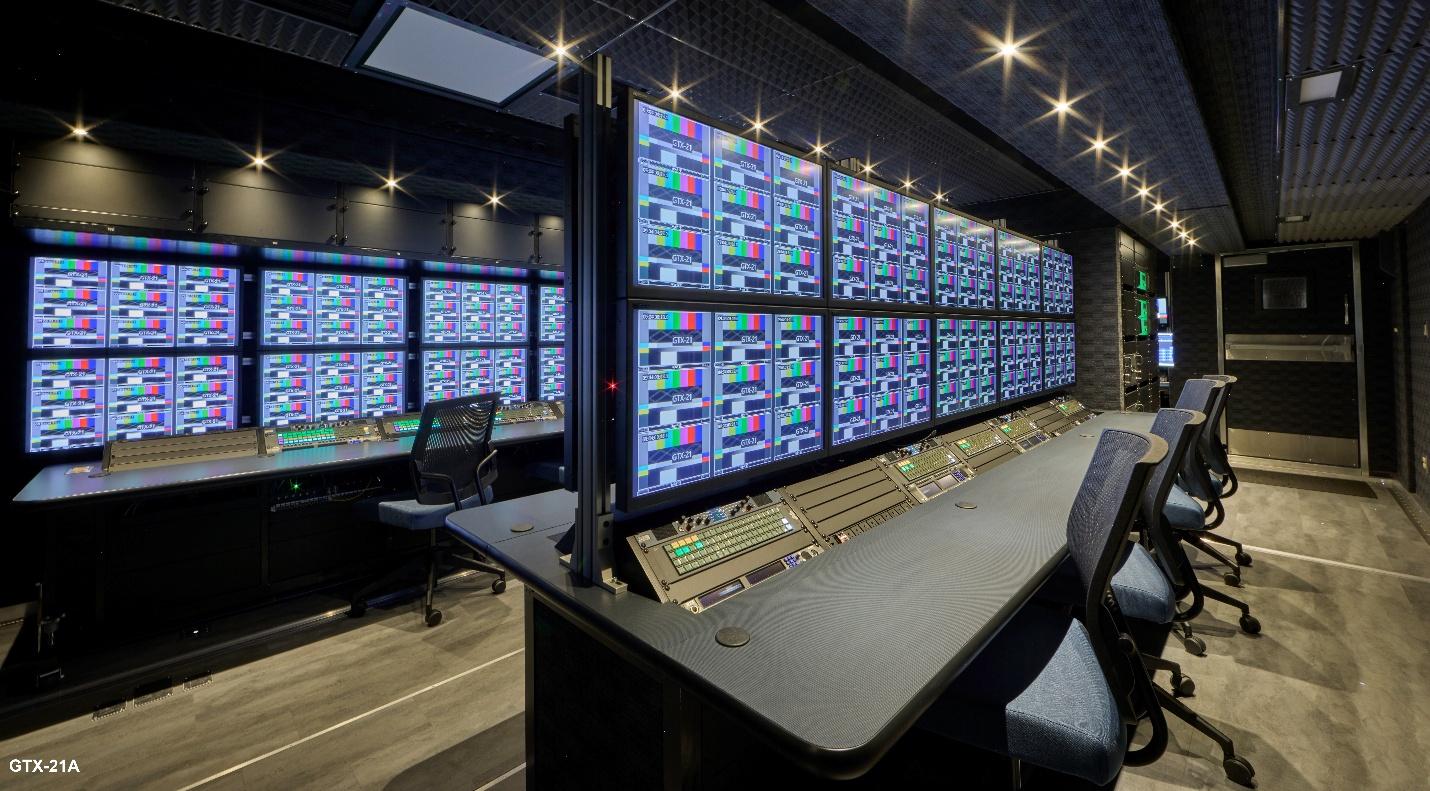

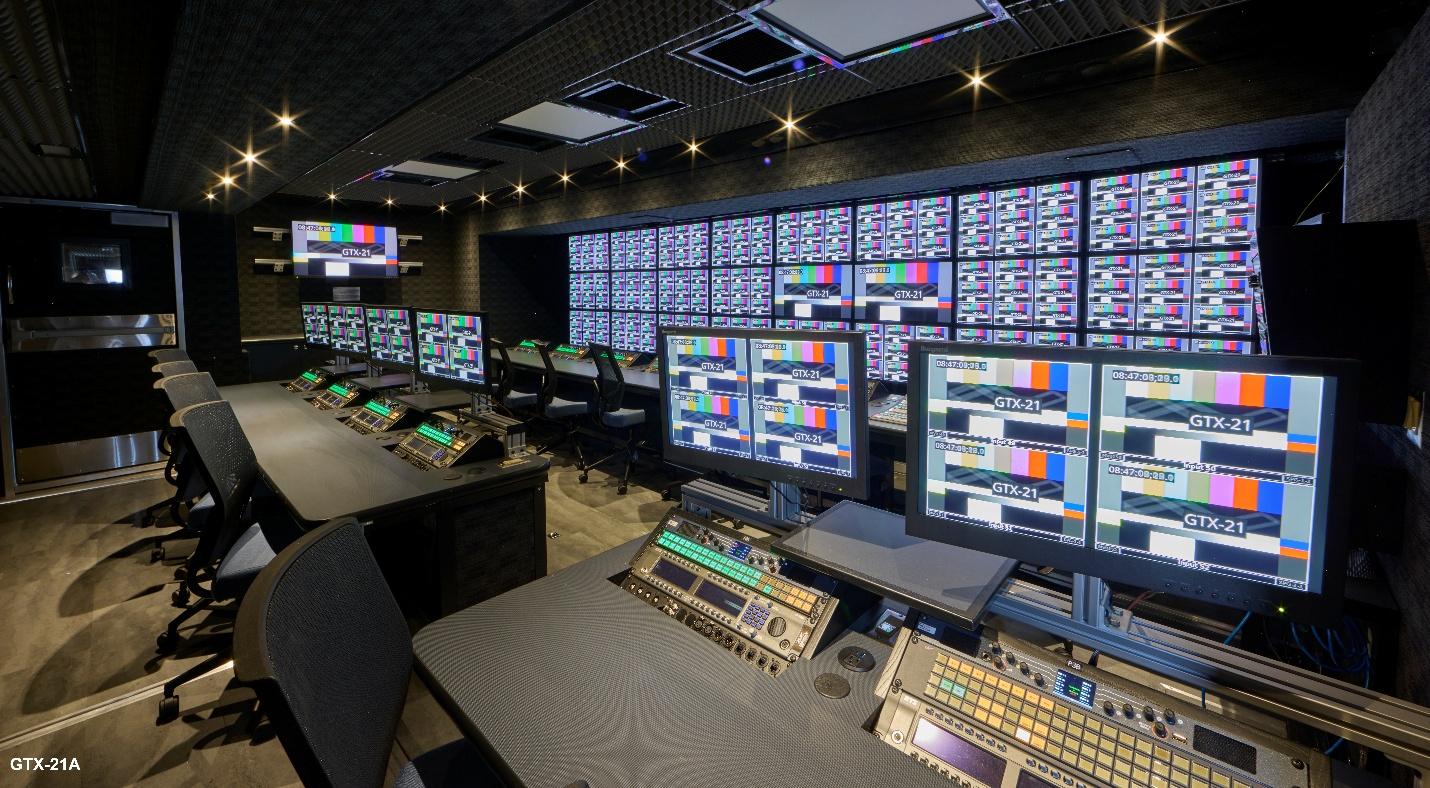

Production Monitor Wall
Grass Valley 821 Routing & Multi-Image Display
(24) 32” Boland 4K Monitors 4096×2160
External Monitors/Converters
(6) 18” Ikegami HD LCD Field Monitors 16:9
(6) 21” Ikegami HD LCD Field Monitors 16:9
(2) 31” Ikegami HD LCD Field Monitors 16:9
(25) Rattlers – ST Fiber to HD/SDI
Systems/Routers
Grass Valley 2110-7 IP Router 64x400G Spine w/Multiple 64x400G Leaves
(2) Telestream Master Sync and Timecode Generator with 4K
Telestream Changeover
72-Channel EVS Neuron Framesyncs 4K/3G/HD Up/Down/Cross
Video Shading
(5) Sony OLED PVM-X1800 monitors w/HDR
(5) Telestream Prism MPI 2
(2) Telestream Prism MPI 2 (in engineering)
Intercom/Communications
RTS Adam 160×160 Matrix
(5) OMNEO 64 Cards
(1) RVON 32 Plus
(16) IFB Channels
(37) RTS KP 5032 Keypanel
(27) RTS KP 4016 Keypanel
(16) RTS 4030 IFB Beltpack
(30) RTS BP-325 Dual Channel Programmable Beltpack
(8) Studio Tech STI-M381 Digital IFB
(8) RTS TIF 4000 Digital Telephone Interface
(16) RTS DBP-5F digital beltpack
(1) Phone System (12 Lines)
(4) QKT
(4) Ringdown Circuits
(30) HR1 Single Muff Headsets
(20) HR2 Double Muff Headsets
(70) Lightweight Headsets
(6) Sennheiser HMD-27 Announcer Headsets
(6) Studio Technologies 215 Announce Console (Dante Boxes)
(8) Studio Tech STI-M381 Digital IFB
(4) RTS DSPK-4-D digital desktop station (Biscuit Box)
Fiber Booth Kit
Calrec Impulse/Hydra
32×32 Audio
12 x 12 Video
(2) 10/100/1G-LAN
(4) IFB Channels
(4) Dual Channel PLs
Lighting
* Upon Request

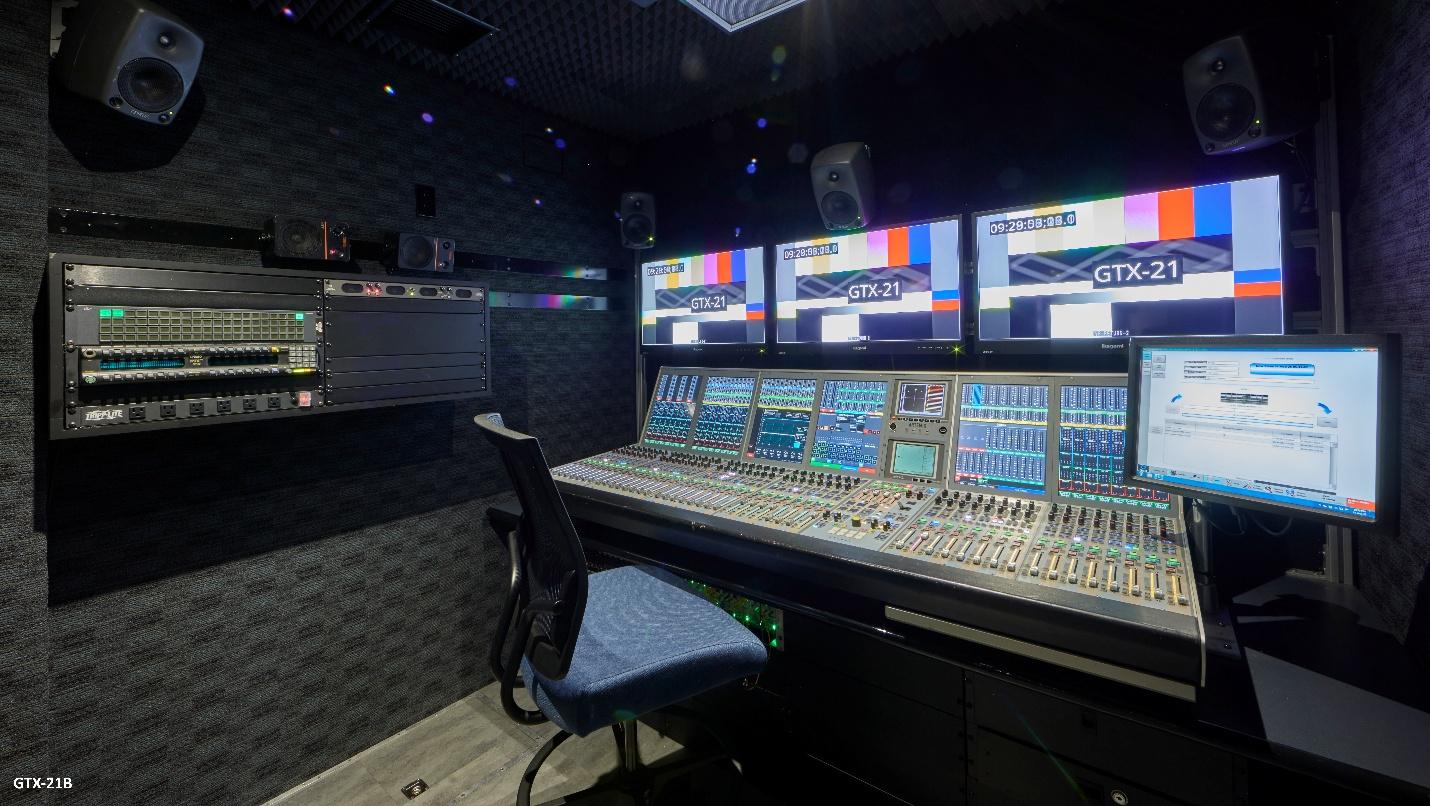

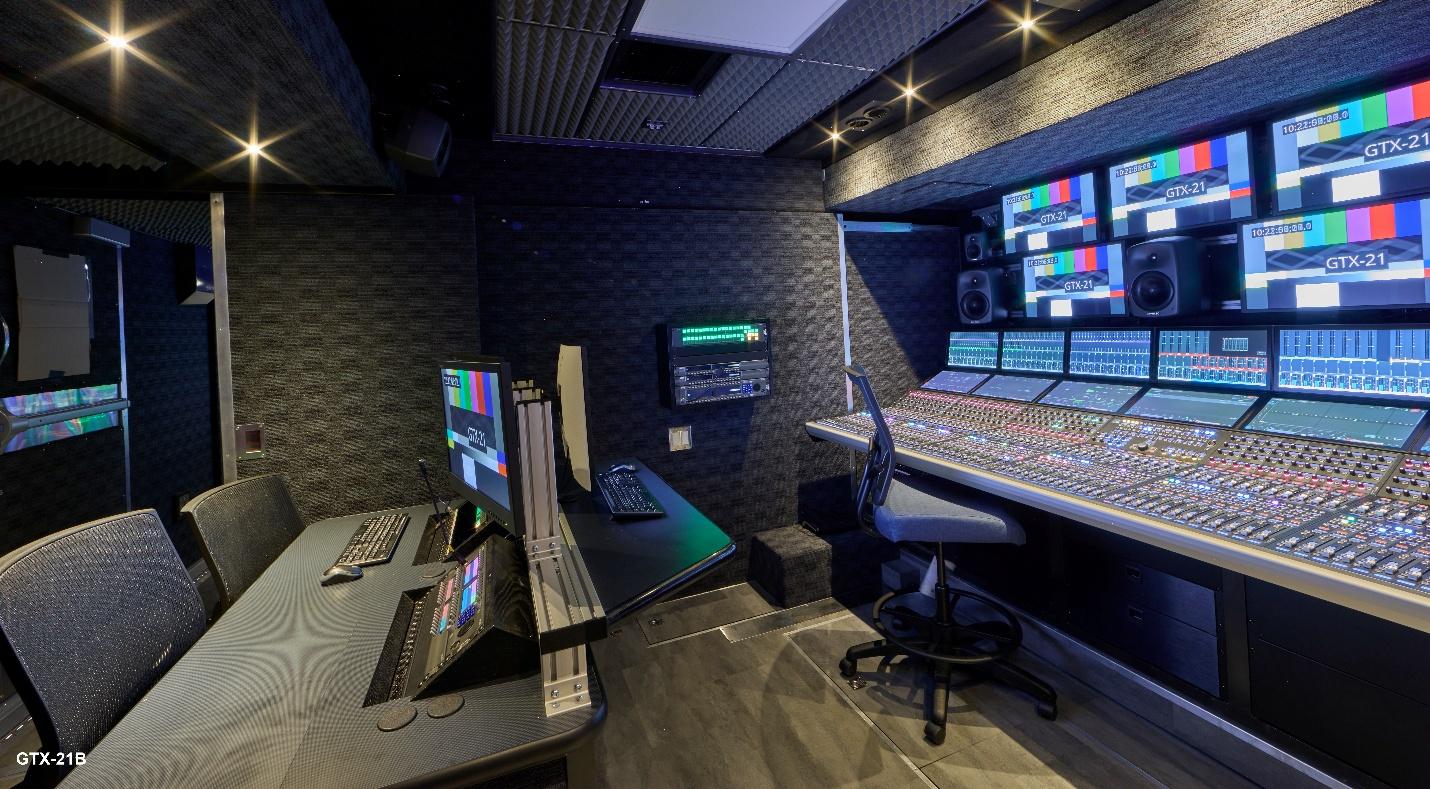

Audio
Calrec Argo Digital Console V9 Dual Impulse Core – 4374 mixer licenses/processing channels
(72) Dual-Faders w/ Impulse/Hydra2
LCD Bar Graph and VU Metering
(2) AOIP Router Modules
MADI Interface – 12-Streams
(6) Dante 64 Interface Channels
128×128 AES Audio
128×128 Analog Audio
384 x 384 Dante
Dual Processor Engines
(2) 360 Systems Digicart/E Ethernet Audio Recorders w/ SD Card
ENCO EDAD Digital Audio Server
(1) CD/DVD Player
Waves Superrack Performer License
Waves Superrack License
Genelec 5.1 Surround Sound Monitoring
RTW Stereo Surround Audio Display
(10) De-embedders
(2) 24 x 8 Hydra Stage Boxes *Upon Request
(1) 32×32 Hydra Stage Box *Upon Request
Cable
16,500’ SMPTE
4000’ DT 12 Audio Mults
1500’ Coax Video (Various Lengths)
11,000’ Tac 12 (Various Lengths)
5-Pair Coax Mults (Various Lengths)
10-Pair Coax Mults (Various Lengths)
Power Requirements
3-Phase
208 Volt
400 Amps
– 200 Amp Environmental
– 200 Amp Technical
Maximum Distance From Power Panel: 150’

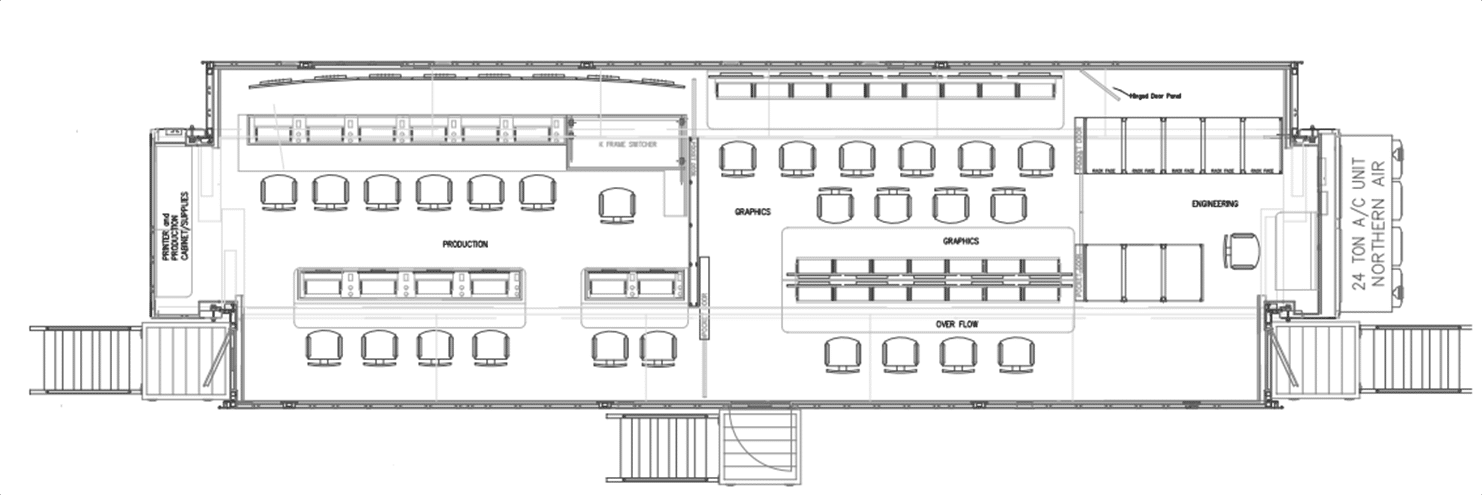

A-Unit Dimensions (Expanded)
W/ Tractor: 74’ L x 13’6” H x 16’ W
W/O Tractor: 56’ L x 13’6” H x 16’ W
Working Footprint: +5’ Around
Expands: Curb Side and Street Side
B-Unit Dimensions (Expanded)
W/ Tractor: 74’ L x 13’6” H x 16’ W
W/O Tractor: 56’ L x 13’6” H x 16’ W
Working Footprint: +5’ Around
Expands: Curb Side and Street Side

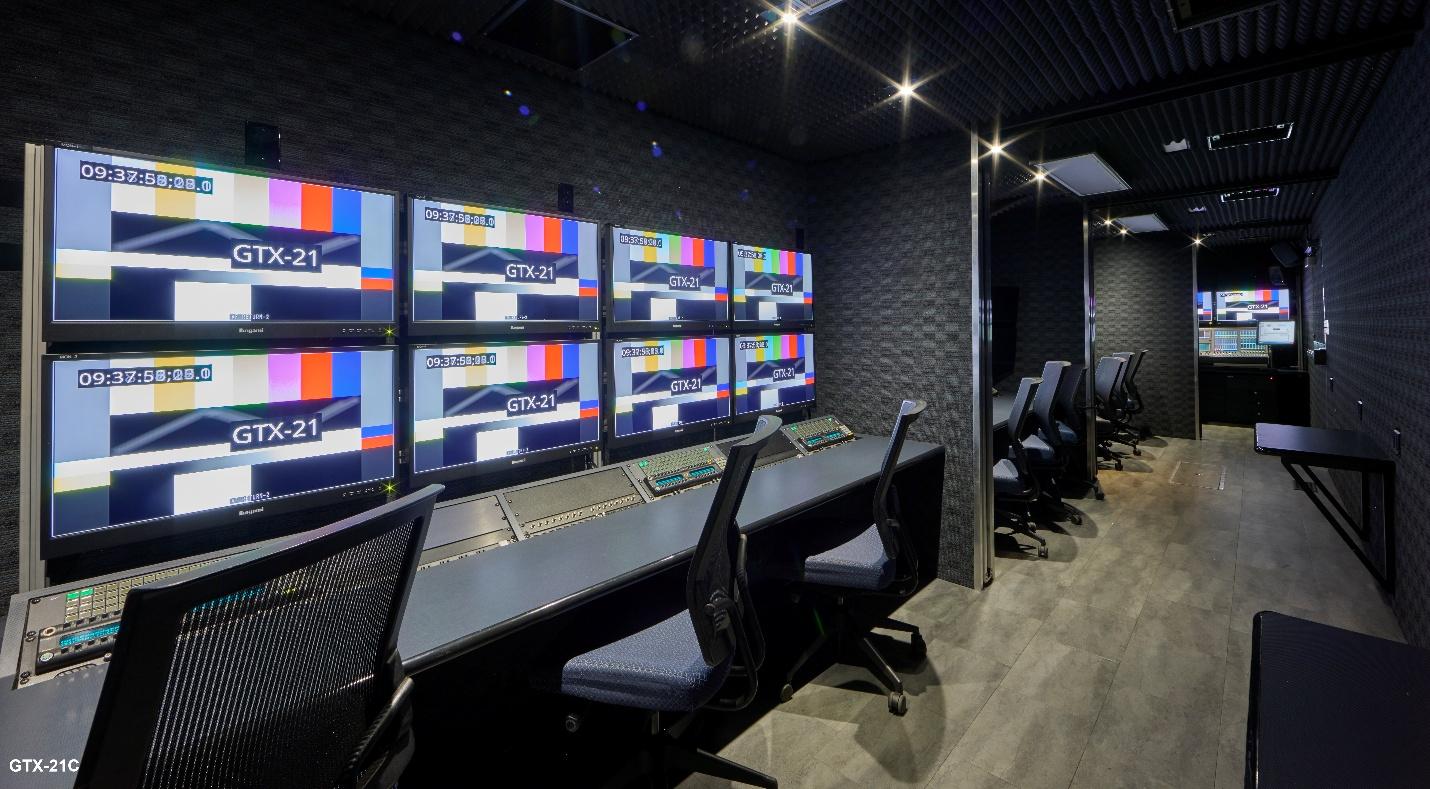

C-Unit Dimensions w/ liftgate
W/ Tractor: 74’ L x 13’6” H x 8’6’’ W
W/O Tractor: 64’ L x 13’6” H x 8’6’’ W
Working Footprint: +5’ Around
Stairs are Curb side (right)
